TITA HUD Pro is for Tesla Model 3 (2021 and later), Model Y, Model 3 Highland, and Model Y Juniper, but not with Model S or Model X!
To get the most out of TITA HUD Pro, complete the installation and OTA updates.
The setup takes FOUR steps. Follow them in order for optimal performance.

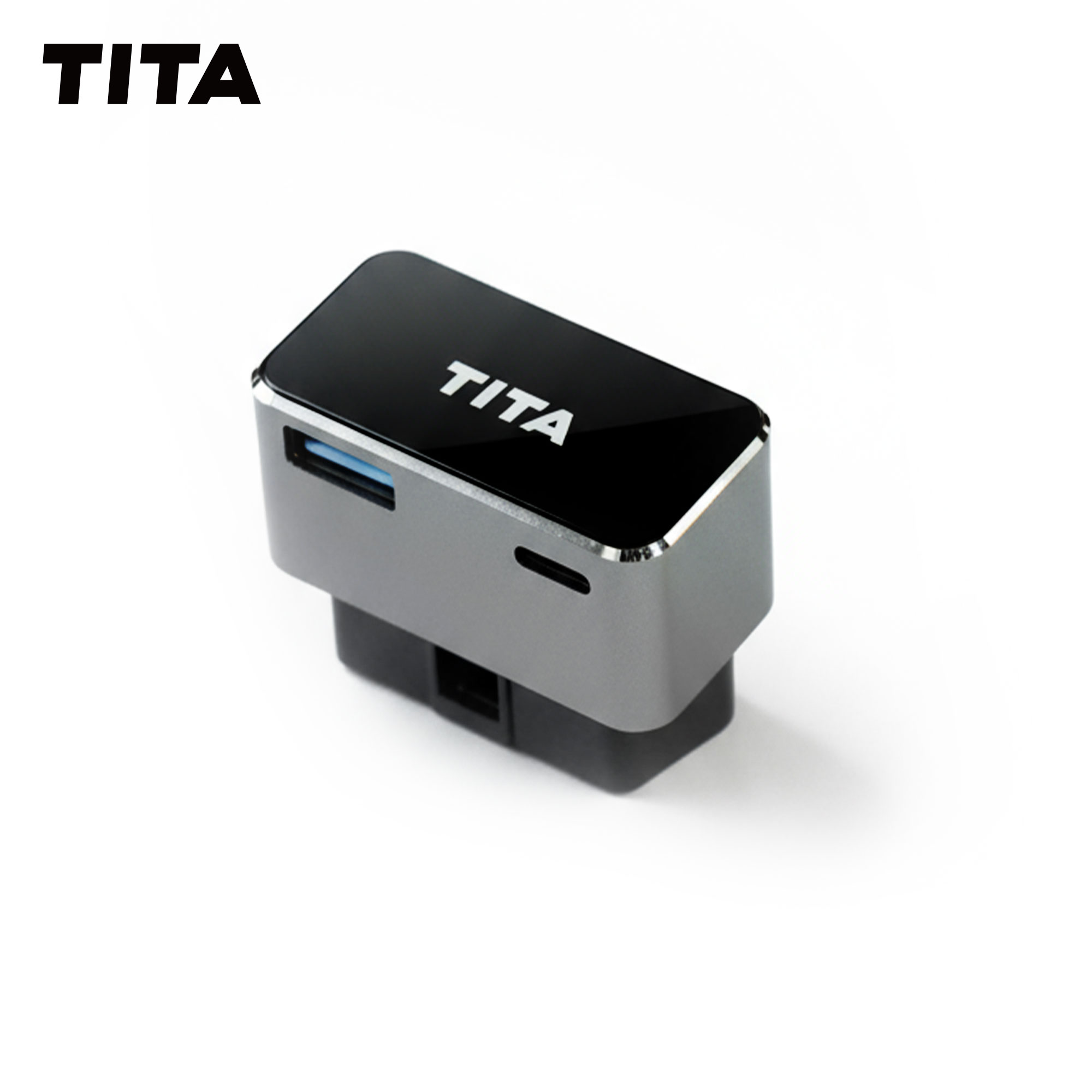

OBD Adapter Note
Installation Location: The OBD adapter is installed under the driver’s seat.
Availability: In the US, only the Model Y Juniper has an OBD port; the OBD adapter cannot be used with other models. In Europe, Asia, and Oceania, most models come with an OBD port.
Key Function: The mount hides cables, while the OBD adapter provides a convenient, discreet power supply.
Purchase Info: The OBD adapter is not included in the HUD Pro package. HUD Pro owners can get it at 50% off.
Detailed installation instructions are provided below; the process takes only 3–5 minutes, with extra steps included to ensure precise operation.

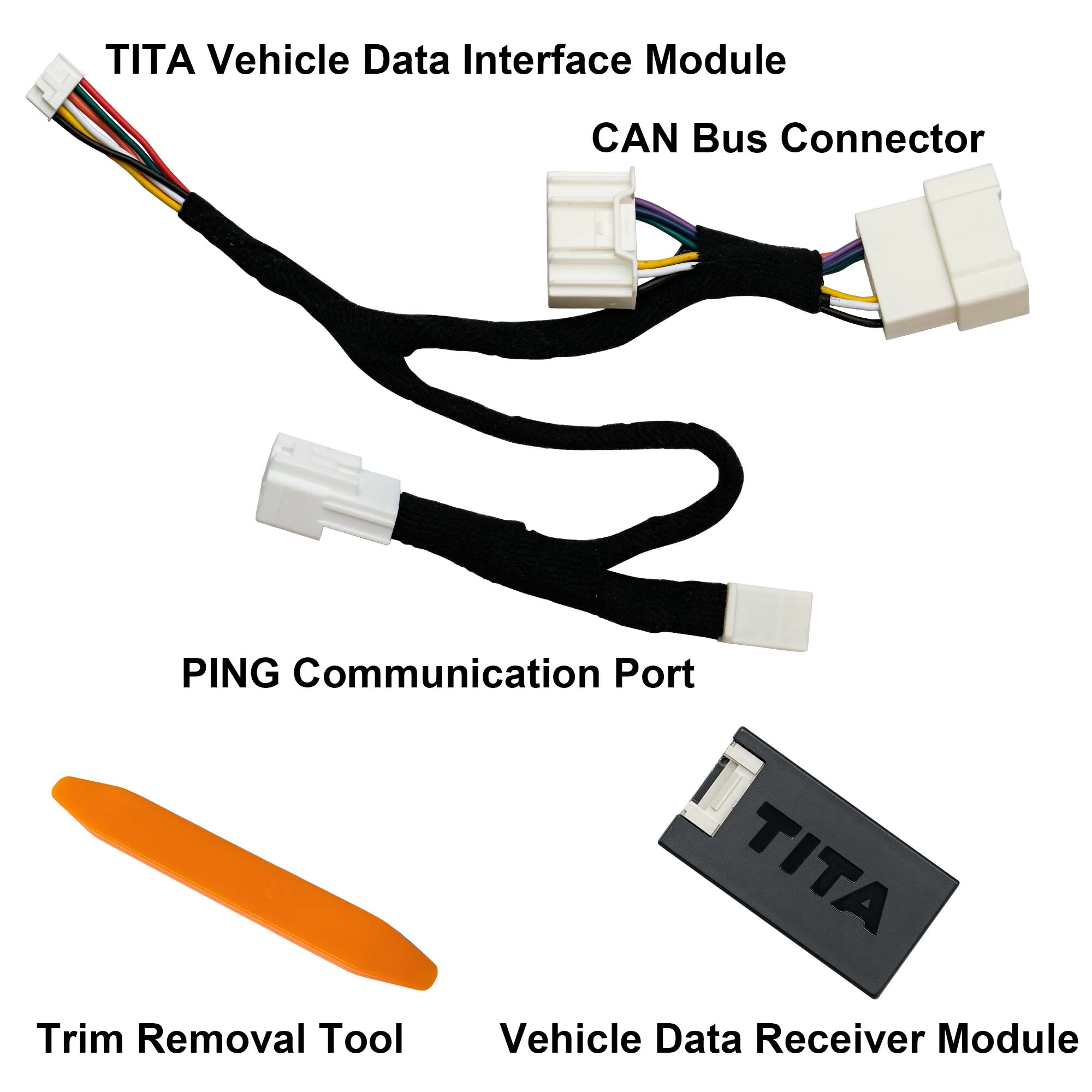

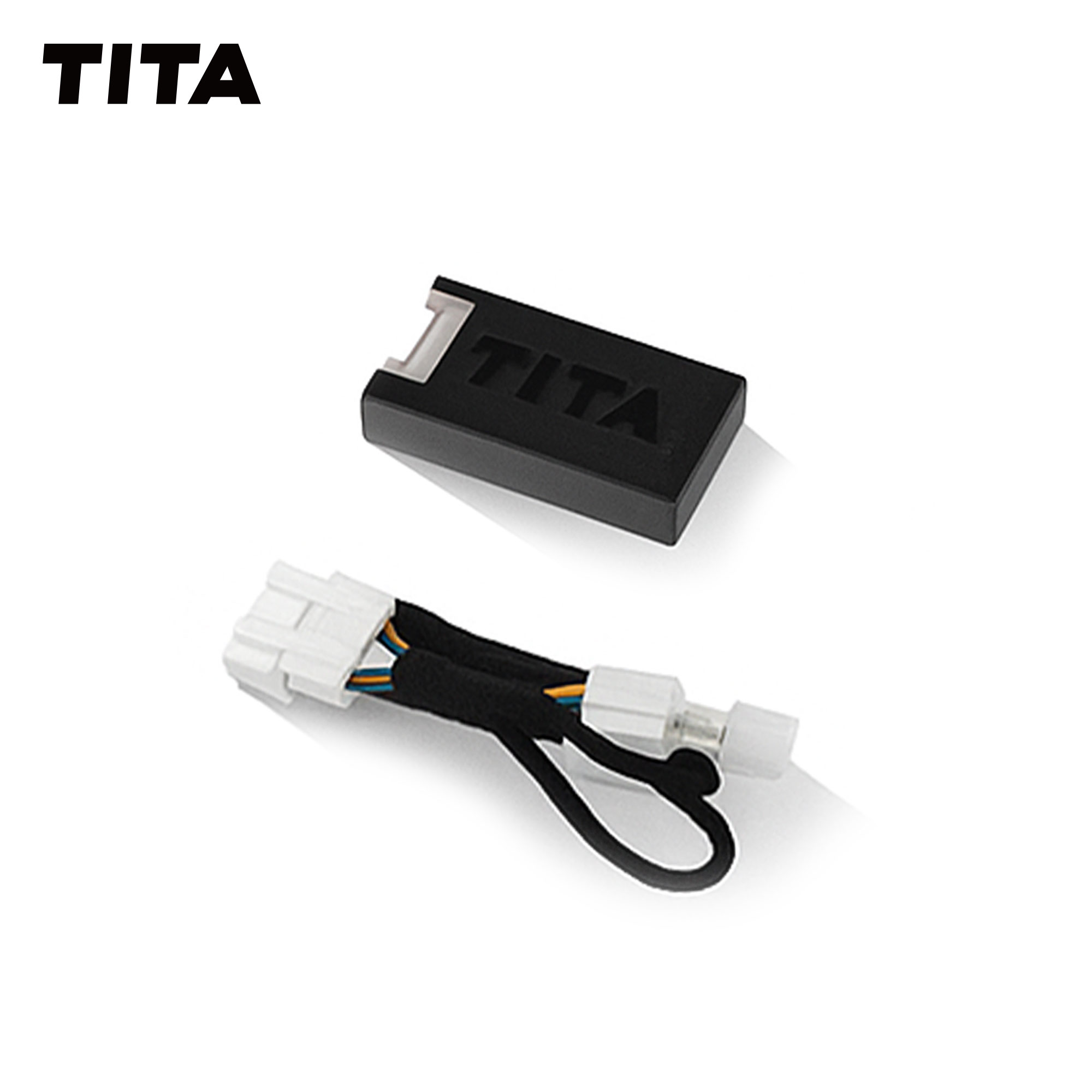

Data Transmitter Kit Contents includes: Data Cable;
Data Transmitter;
Pry Tool.

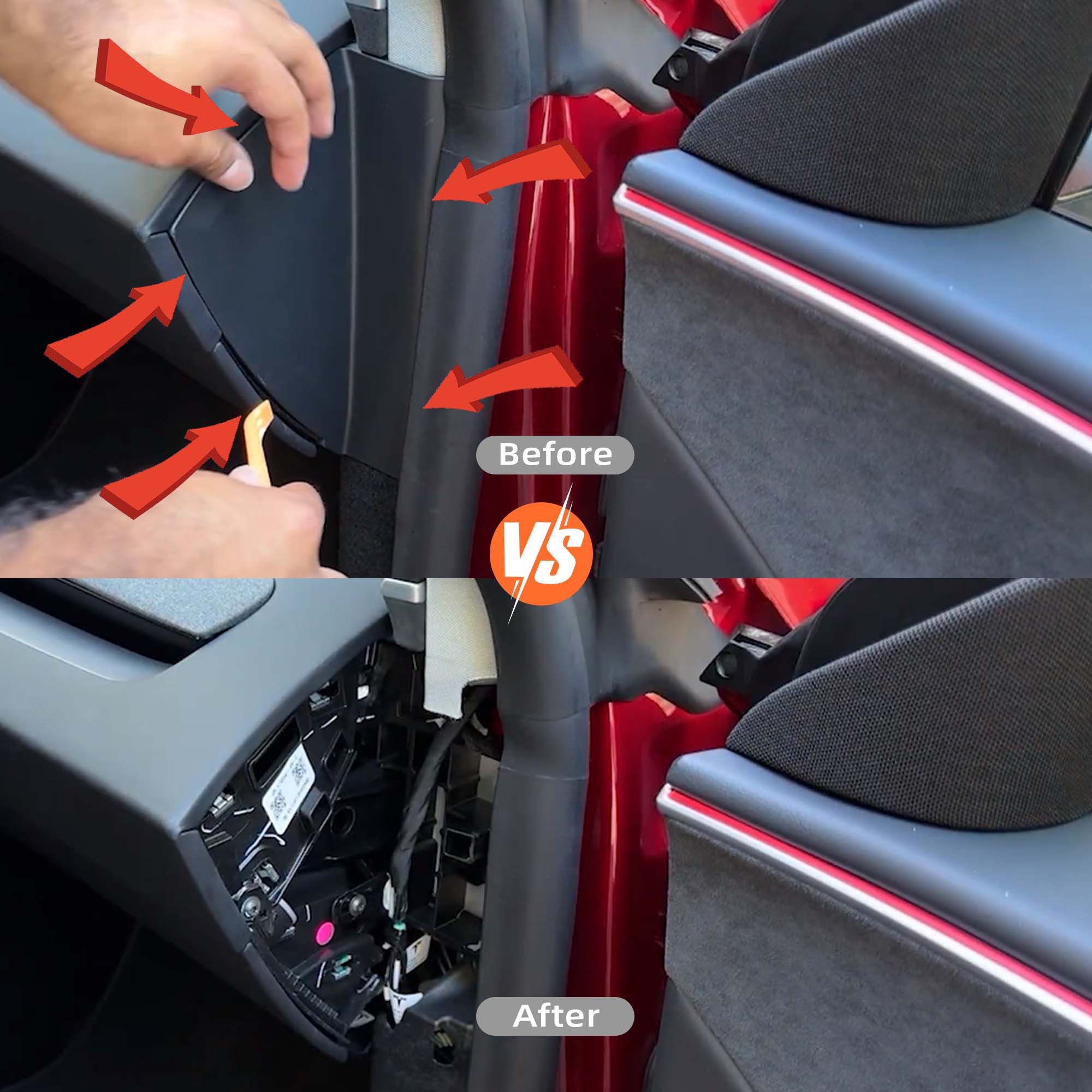

Model Y Juniper: Remove the entire cover counterclockwise using a trim tool.
Other models: Remove only the rectangular A-pillar cover.

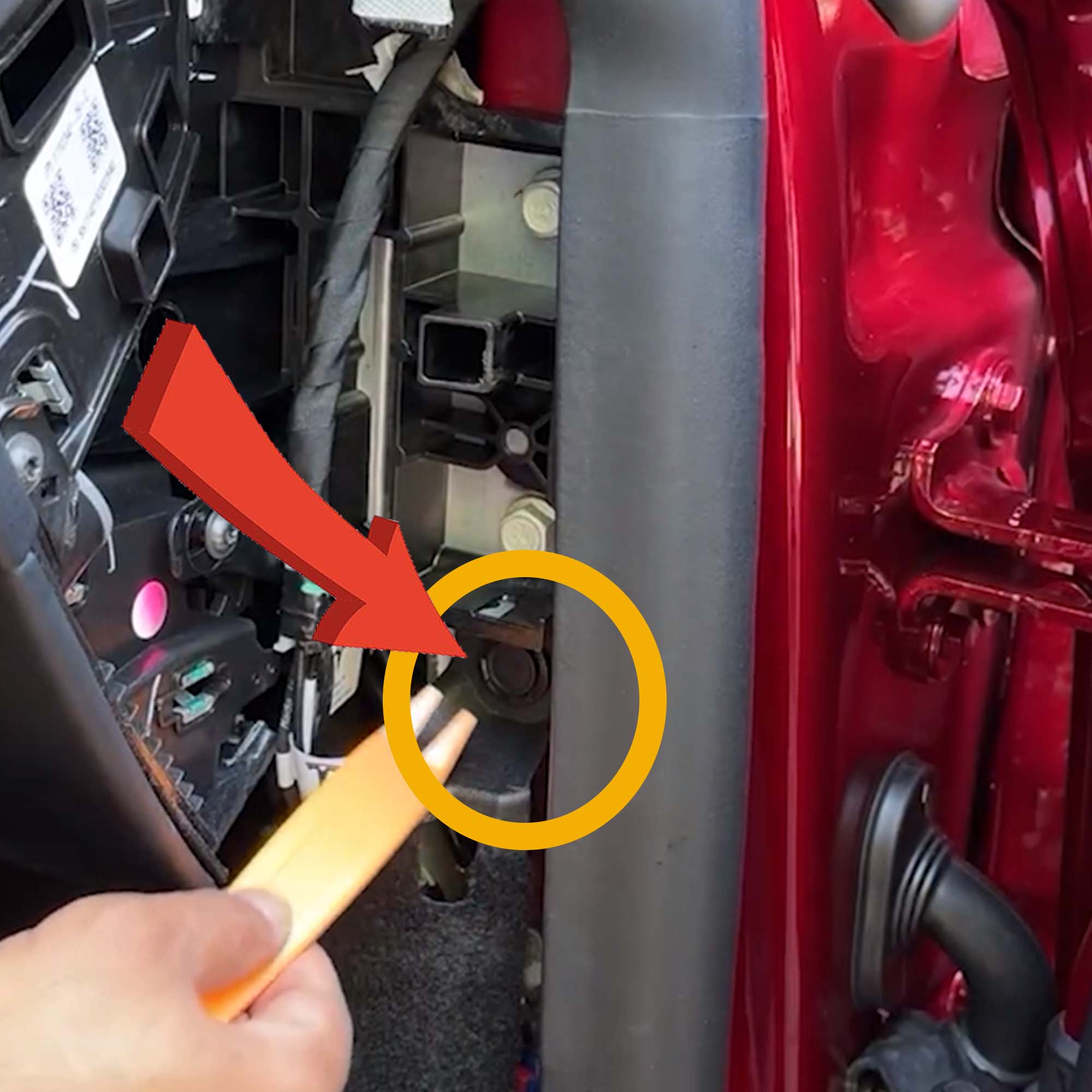

Use a trim tool to remove the plastic fastener beneath the cover.
During reinstallation, hold the fastener by hand to make refitting easier.

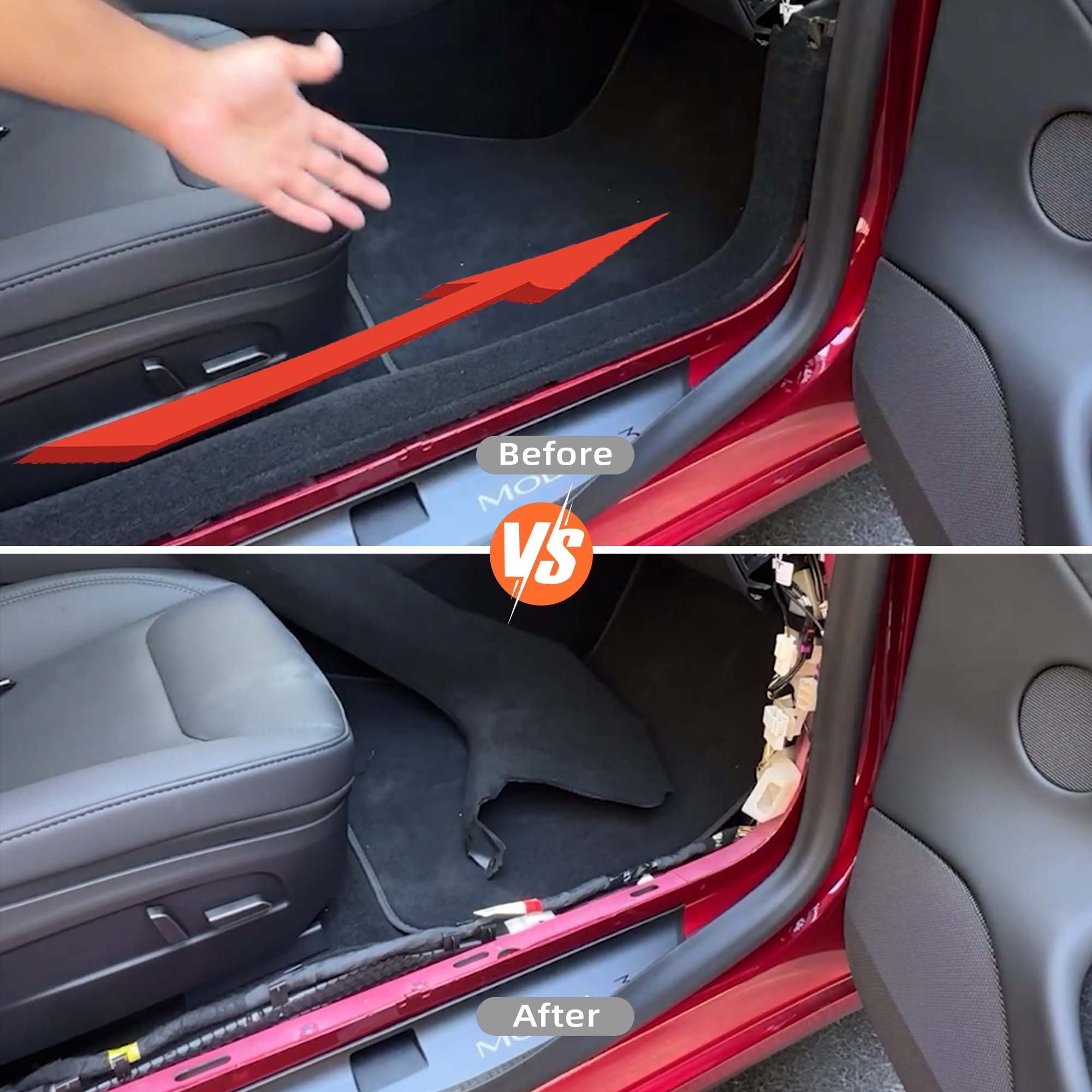

Model Y Juniper: Use a trim tool to pry the plastic step panel from rear (seat side) to front.

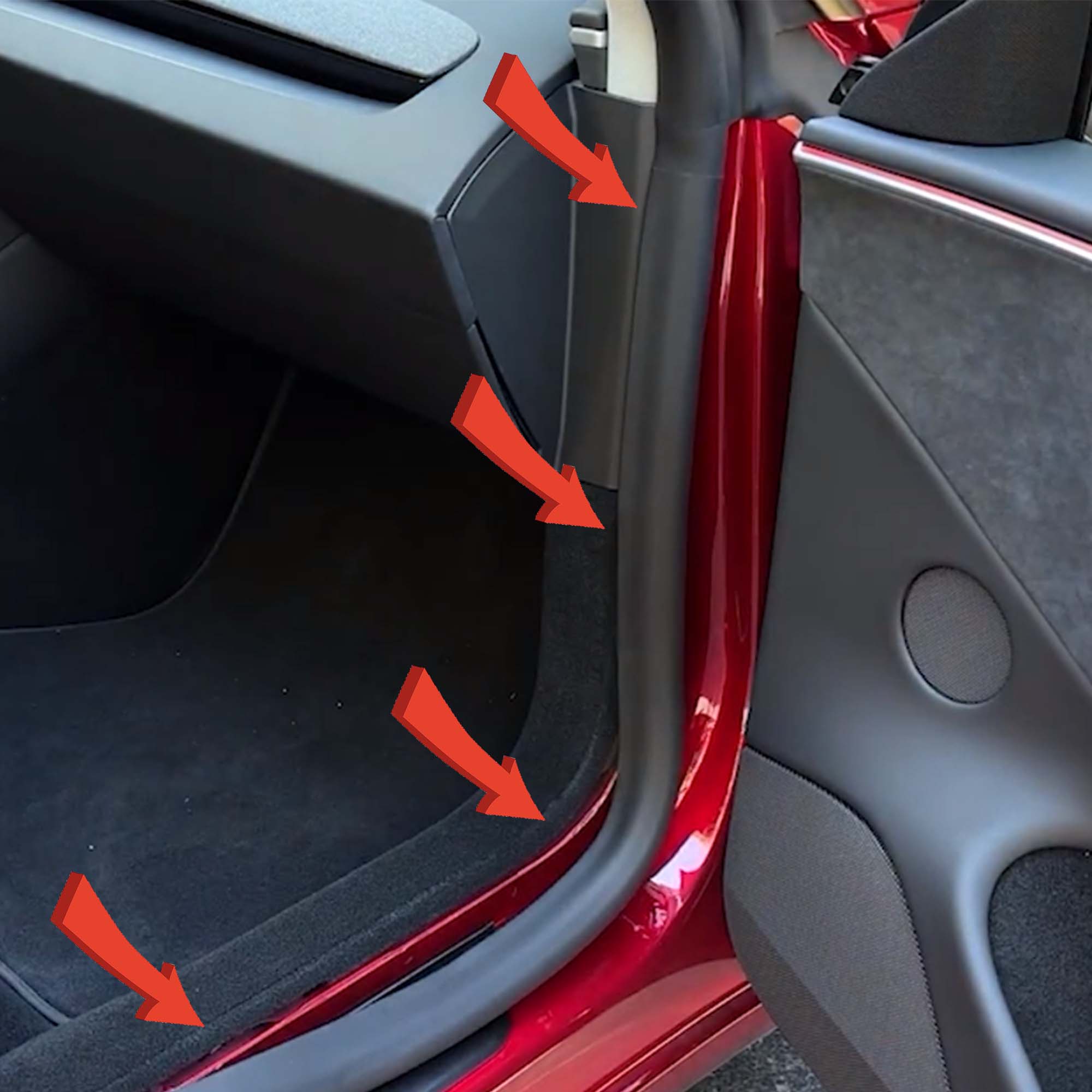

Other models: Pry off the A-pillar trim cover only.

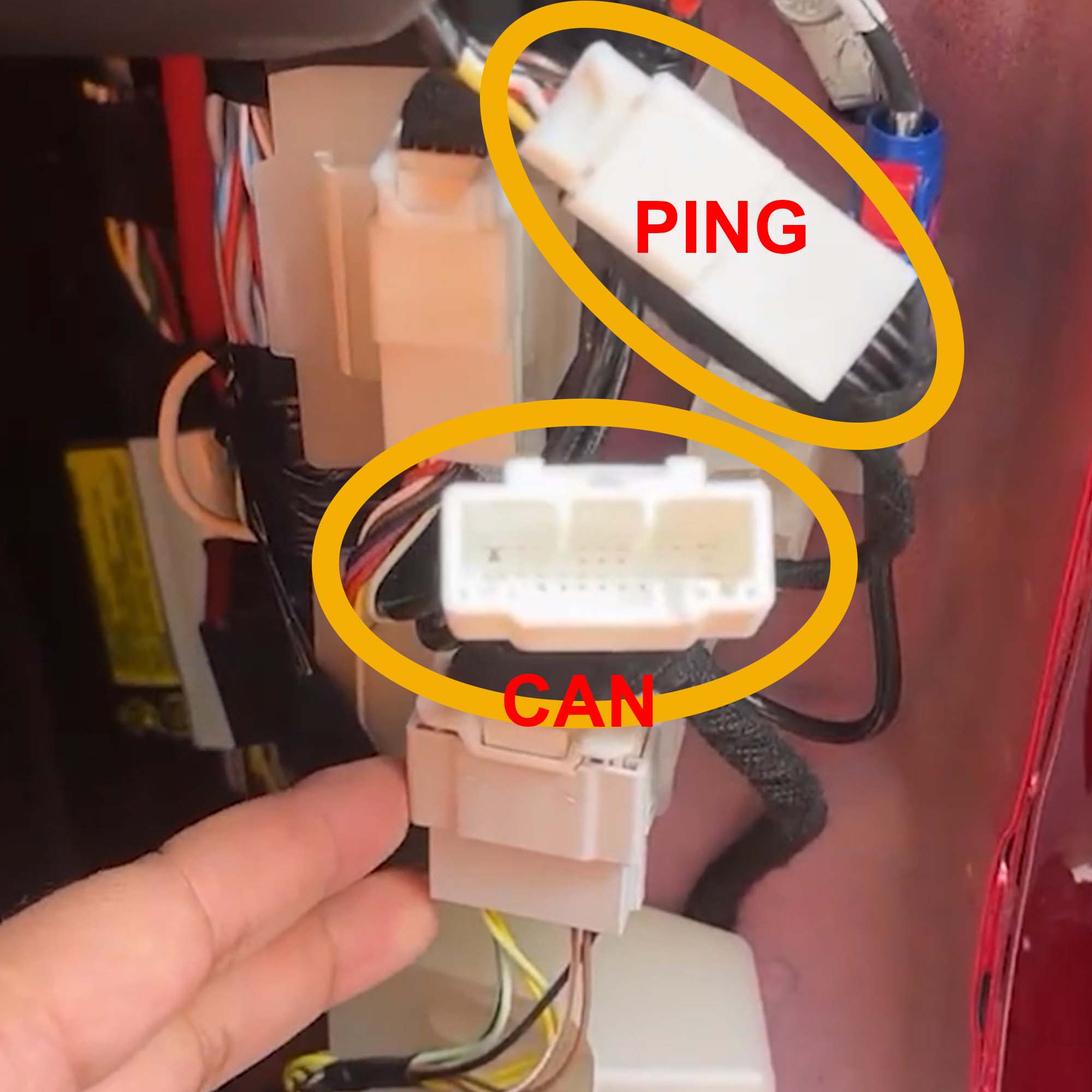

Locate the Tesla vehicle’s factory CAN bus interface and PING module.
These interfaces are identical to TITA’s interfaces.
Connect TITA’s CAN module to the vehicle.
Separate the vehicle’s PING module and connect TITA’s PING module in parallel.
Connect TITA’s transmitter to the TITA wiring harness.
Power the display. If “P” is shown correctly, the transmitter installation is complete.
Then reinstall the passenger-side components in reverse order.
Data Transmitter Kit Contents includes: Data Cable;
Data Transmitter;
Pry Tool.
Model Y Juniper: Remove the entire cover counterclockwise using a trim tool.
Other models: Remove only the rectangular A-pillar cover.
Use a trim tool to remove the plastic fastener beneath the cover.
During reinstallation, hold the fastener by hand to make refitting easier.
Model Y Juniper: Use a trim tool to pry the plastic step panel from rear (seat side) to front.
Other models: Pry off the A-pillar trim cover only.
Locate the Tesla vehicle’s factory CAN bus interface and PING module.
These interfaces are identical to TITA’s interfaces.
Connect TITA’s CAN module to the vehicle.
Separate the vehicle’s PING module and connect TITA’s PING module in parallel.
Connect TITA’s transmitter to the TITA wiring harness.
Power the display. If “P” is shown correctly, the transmitter installation is complete.
Then reinstall the passenger-side components in reverse order.

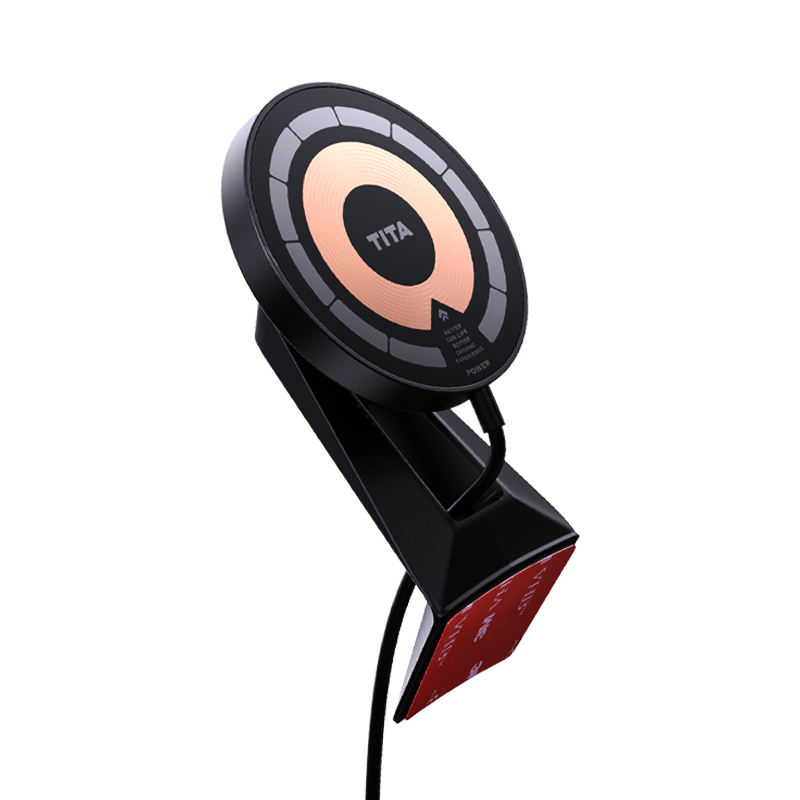

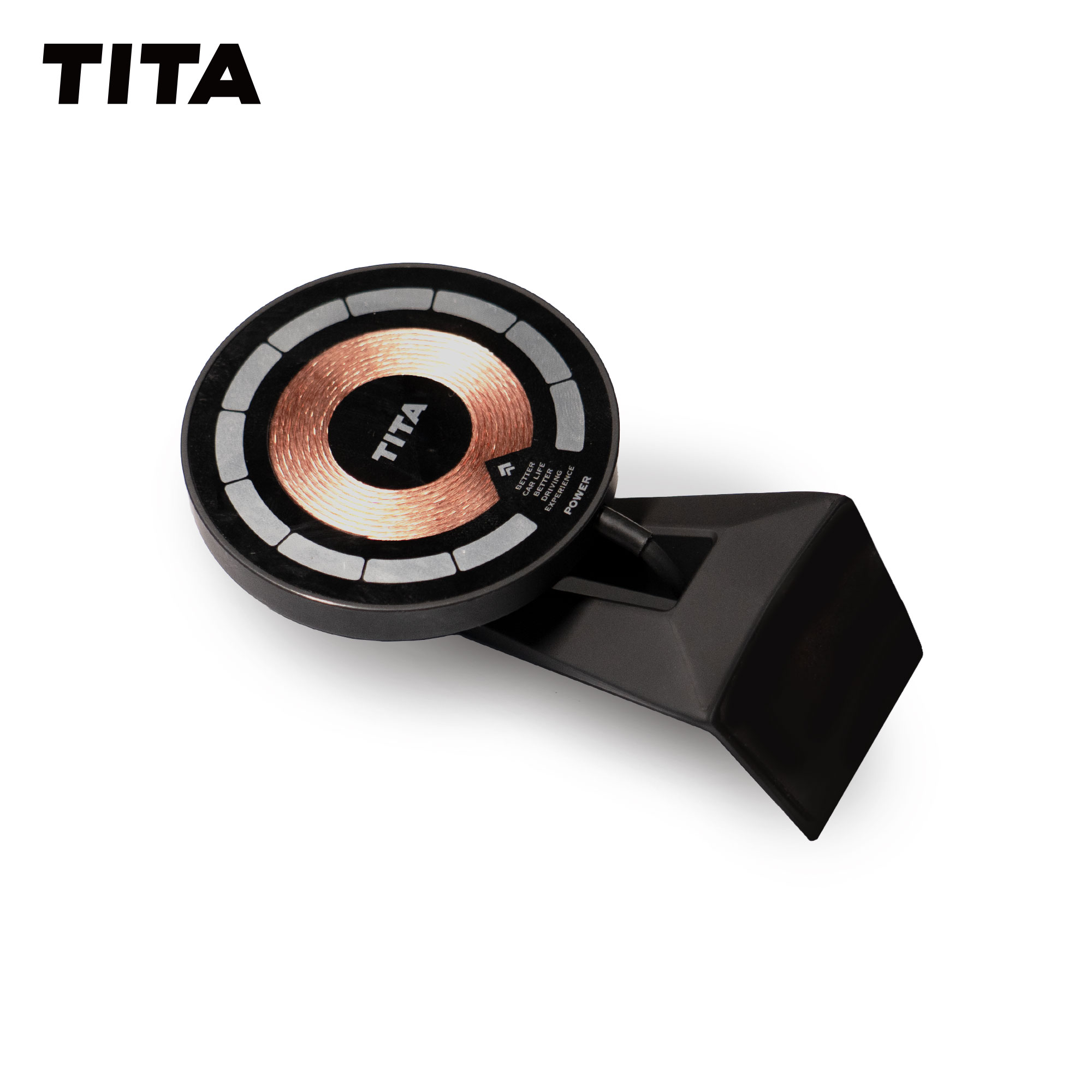

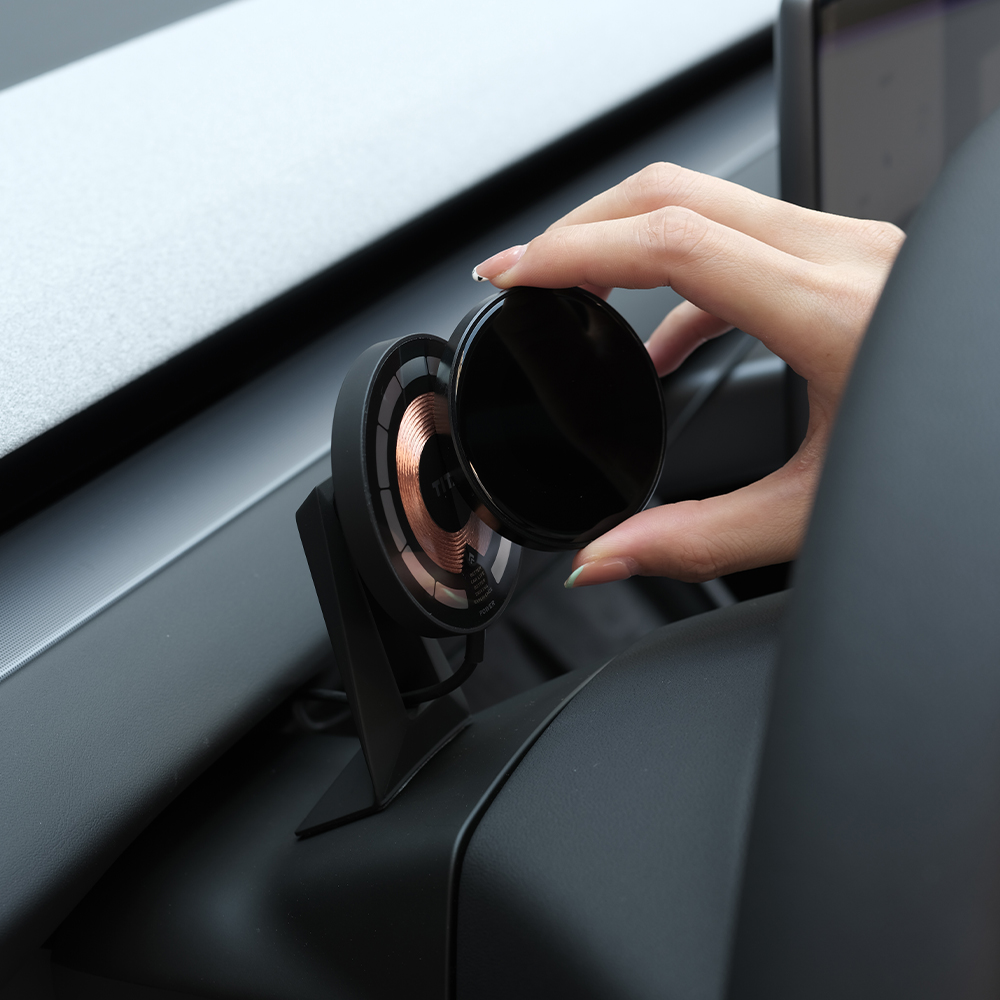

The magnetic charging mount supports Qi 2.0, 15W fast charging, and MagSafe, powered via Type-C with a 54 inch (1.8 m) cable for phone charging.

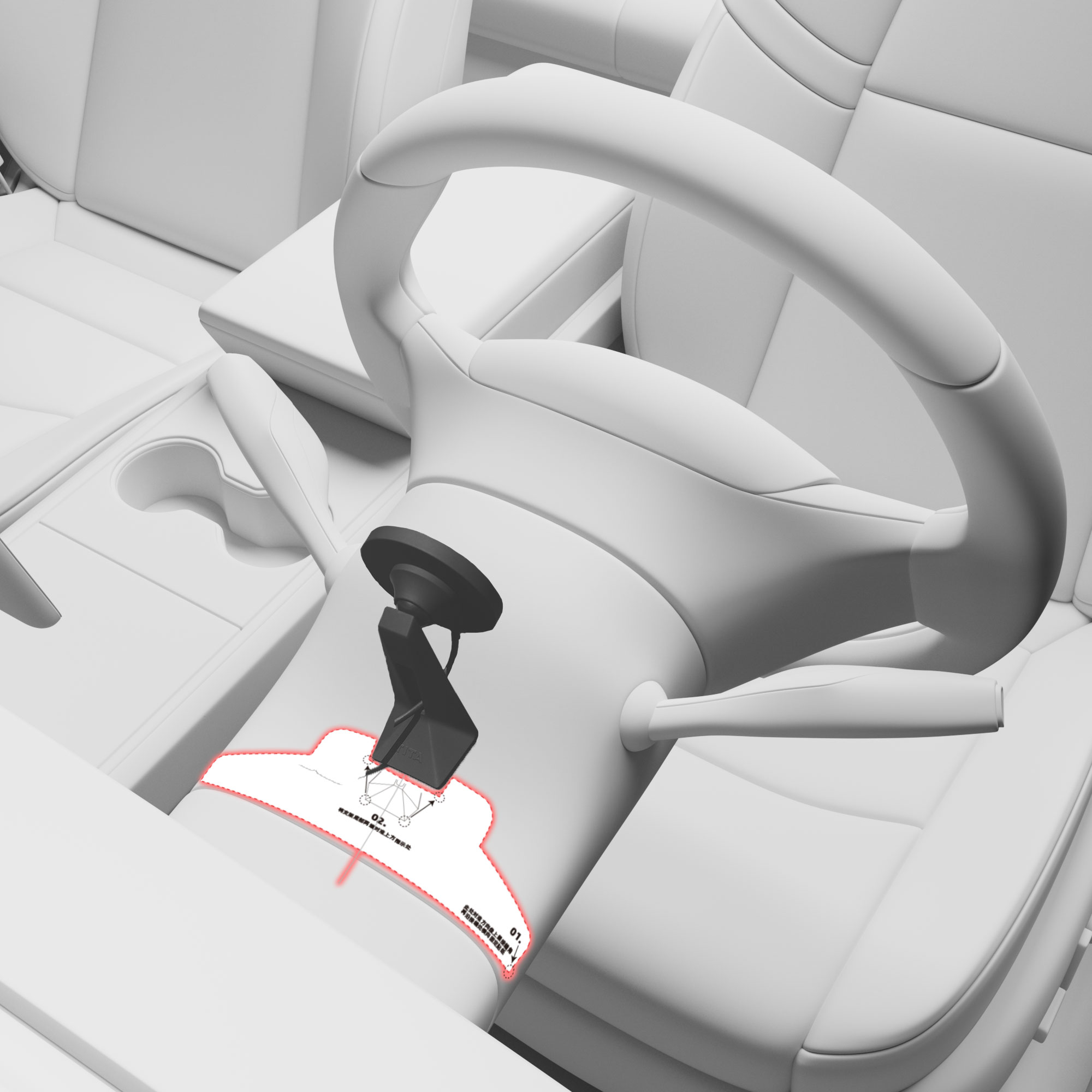

Place the TITA sticker on the steering wheel, using the correct sticker for Model 3/Y or Model 3 Highland/Model Y Juniper, aligning the bottom-left corner with the steering wheel plastic block’s port.

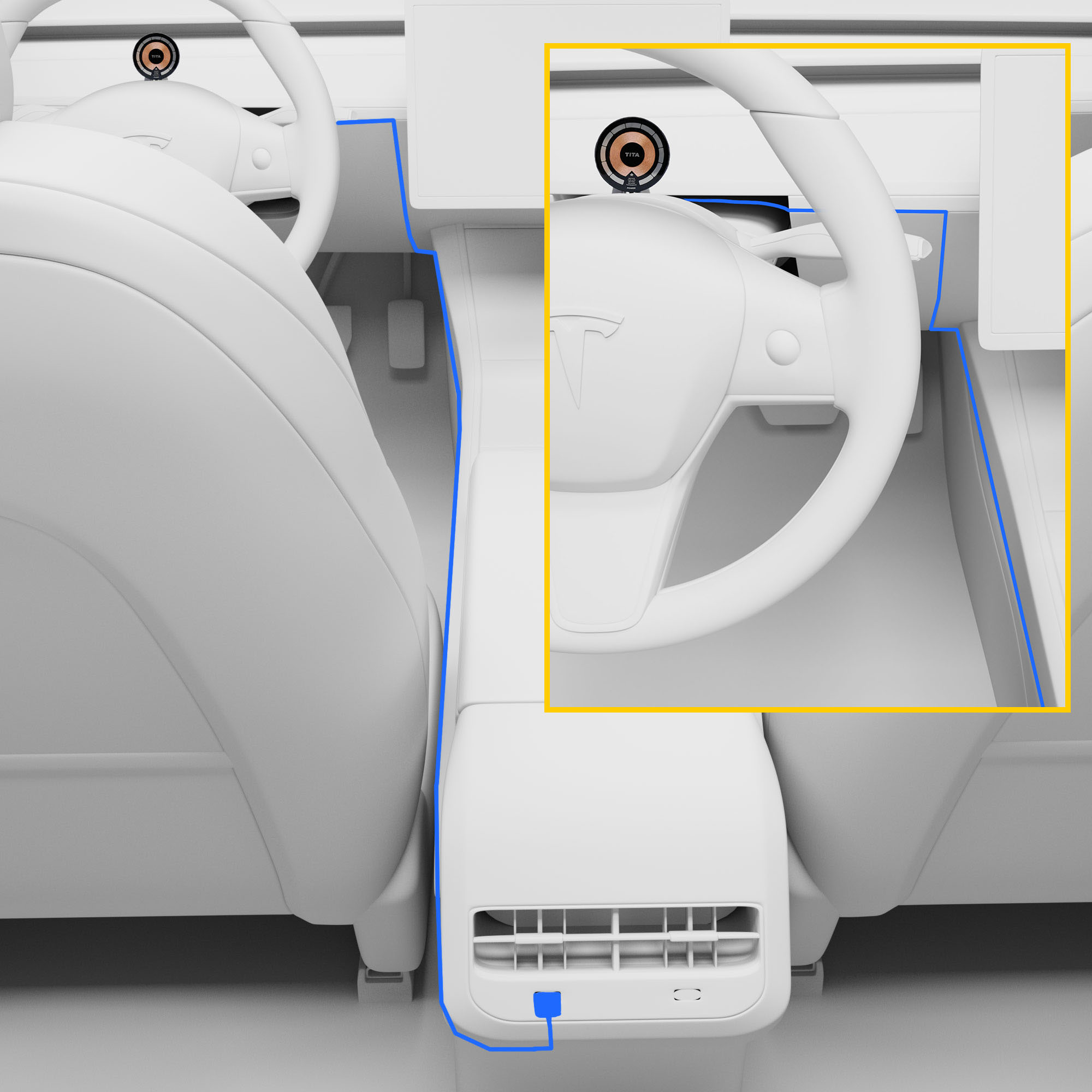

For aesthetics and practicality, route the charging cable through the gaps near the steering wheel plastic parts, then along the leather gaps near the center console to the mount, drawing power from the rear.
The OBD port is located under the driver’s seat; simply plug in the TITA adapter, and the mount’s cable can be hidden by tucking just a small section into a gap.
The magnetic charging mount supports Qi 2.0, 15W fast charging, and MagSafe, powered via Type-C with a 54 inch (1.8 m) cable for phone charging.
Place the TITA sticker on the steering wheel, using the correct sticker for Model 3/Y or Model 3 Highland/Model Y Juniper, aligning the bottom-left corner with the steering wheel plastic block’s port.
For aesthetics and practicality, route the charging cable through the gaps near the steering wheel plastic parts, then along the leather gaps near the center console to the mount, drawing power from the rear.
The OBD port is located under the driver’s seat; simply plug in the TITA adapter, and the mount’s cable can be hidden by tucking just a small section into a gap.

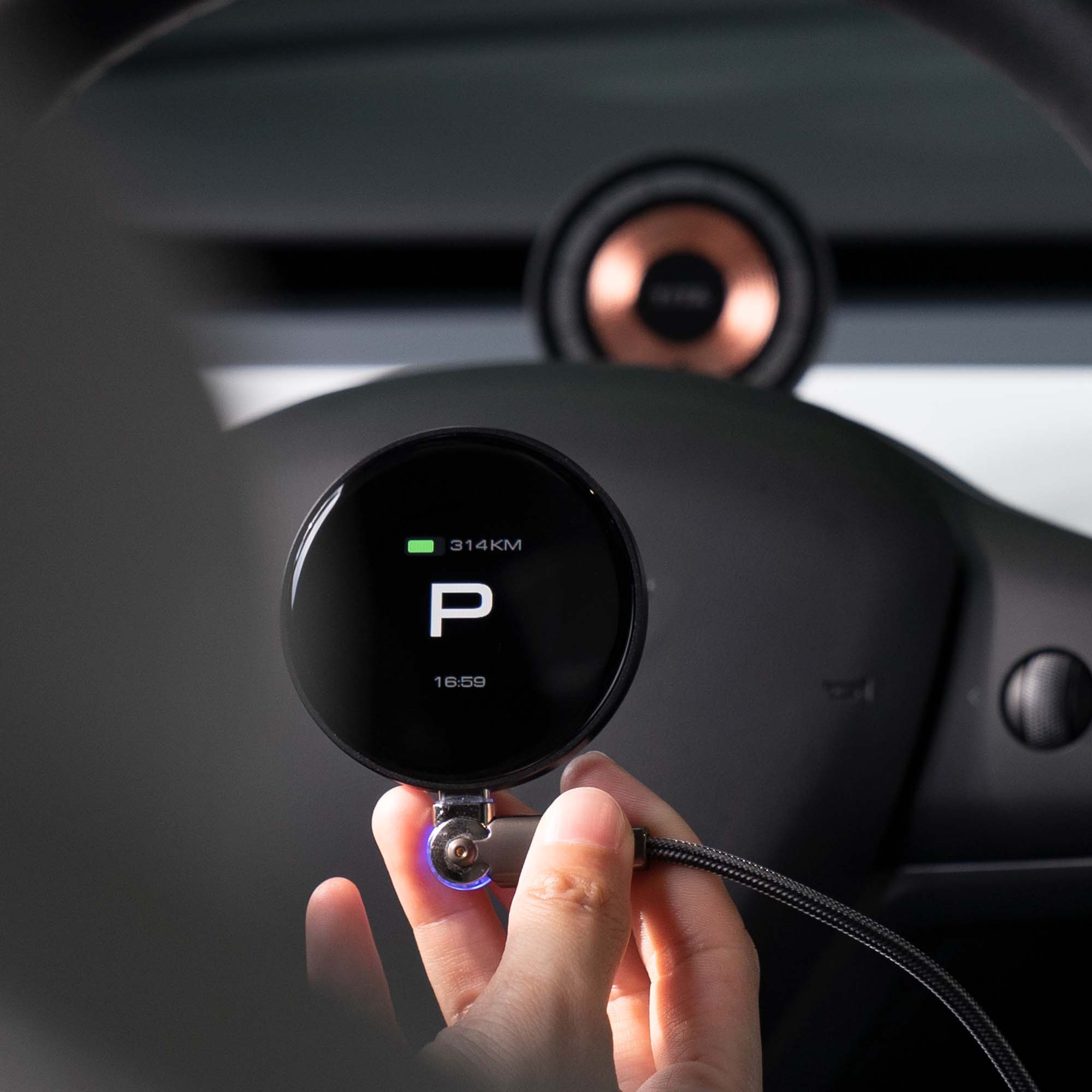

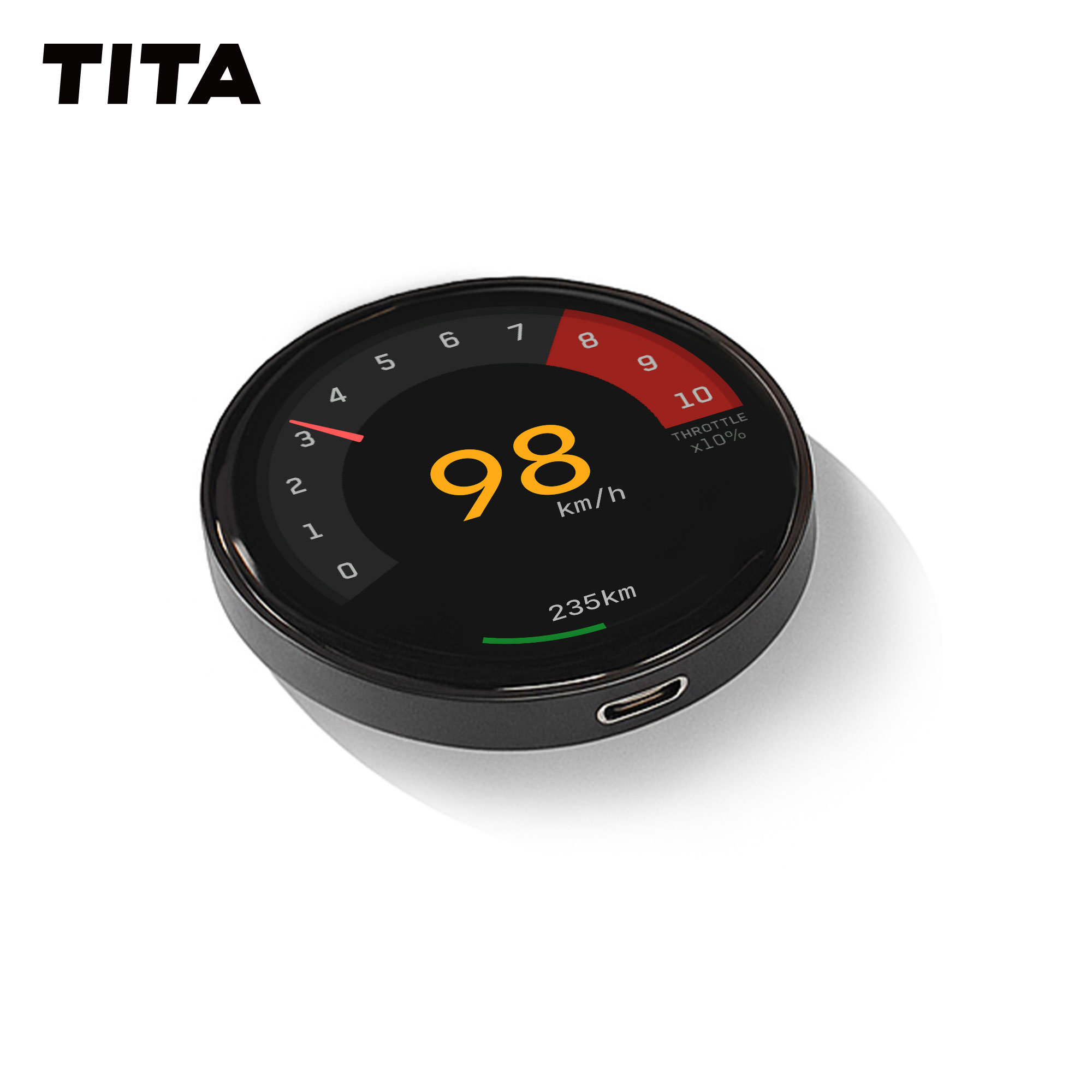

After installing the transmitter and powering the mount, simply place the screen on the mount to use; it will initially show basic vehicle info, and both the screen and transmitter require an OTA update.
After installing the transmitter and powering the mount, simply place the screen on the mount to use; it will initially show basic vehicle info, and both the screen and transmitter require an OTA update.
The initial HUD only displays basic vehicle information and requires an OTA update to unlock full functionality.

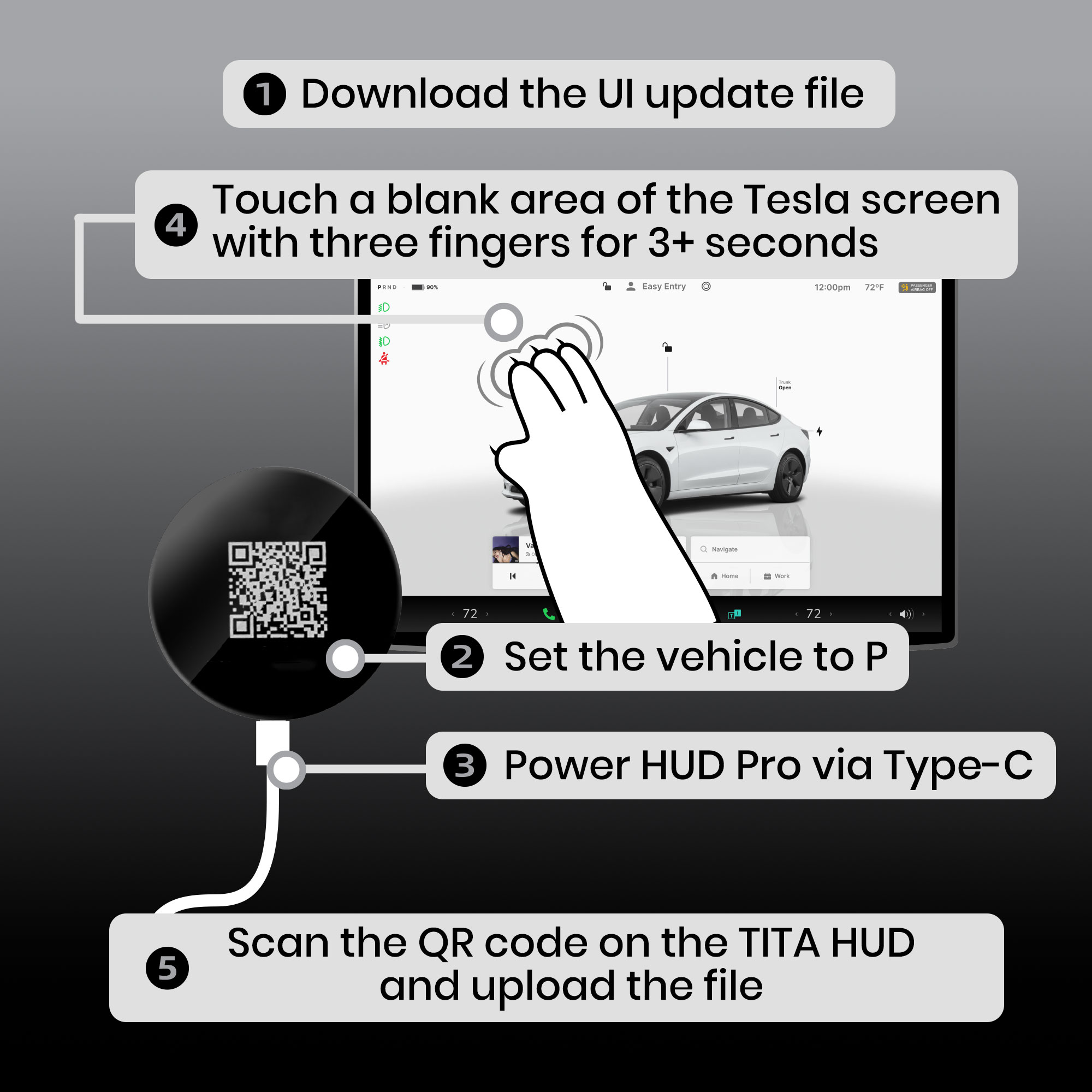

OTA Update Requirements

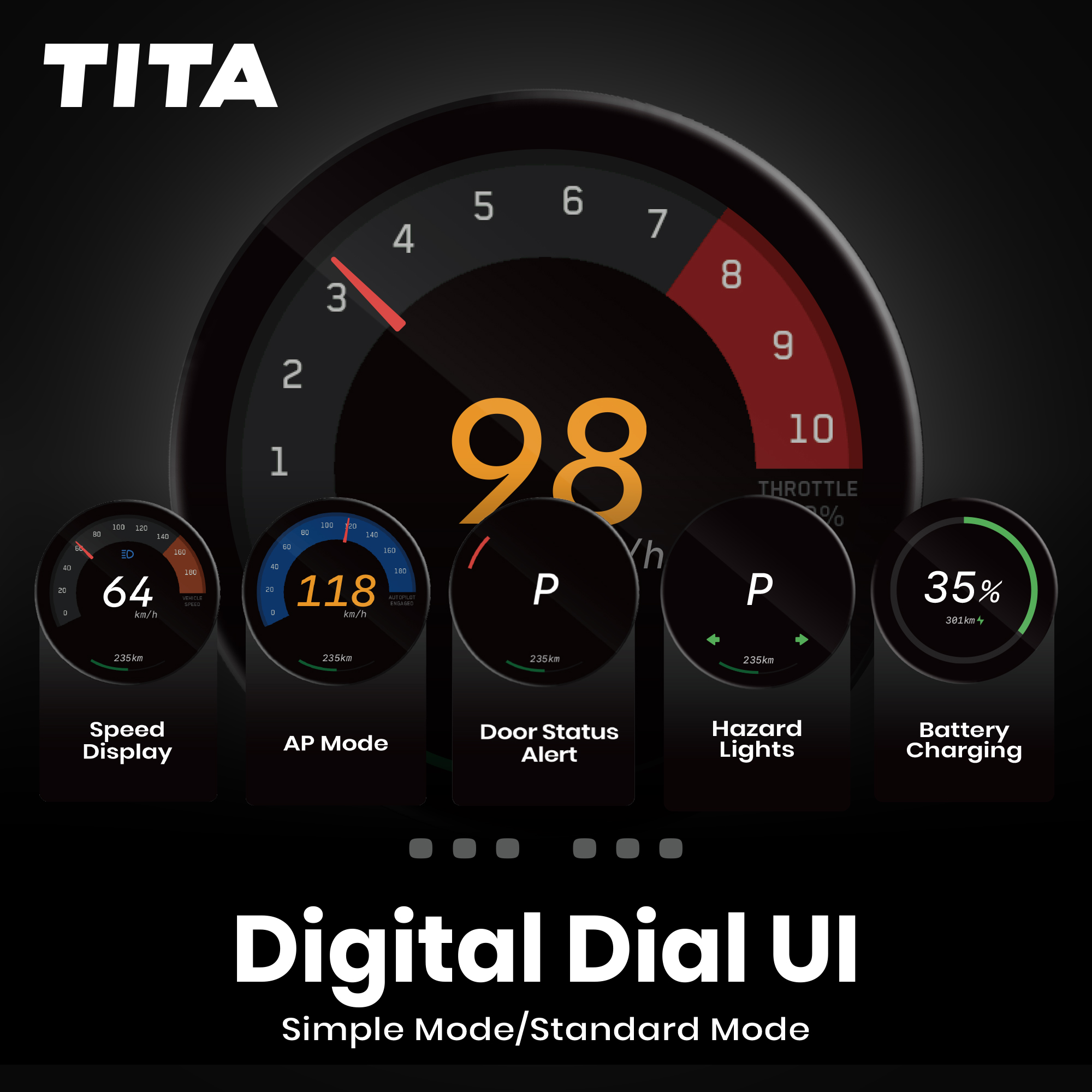

1. Select one of the three available UI versions below for the OTA update. (not a one-time selection, allowing users to change freely.)
2. Vehicle must be in P gear.
3. Screen must be powered via Type-C.
4. Touch a blank area on the Tesla center console with three fingers for over 3 seconds.
5. Scan the QR code on the TITA screen to access the website and complete the OTA update.

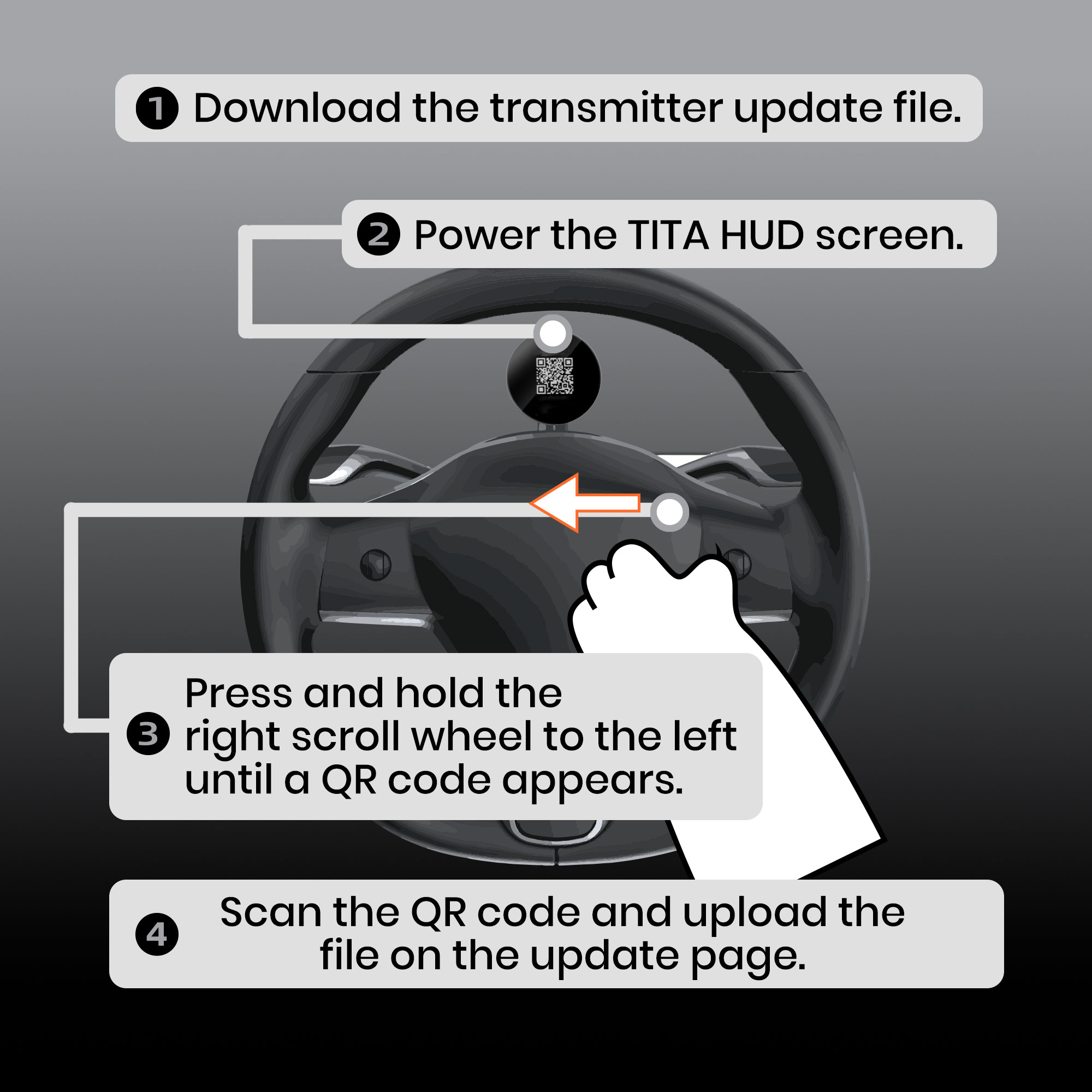

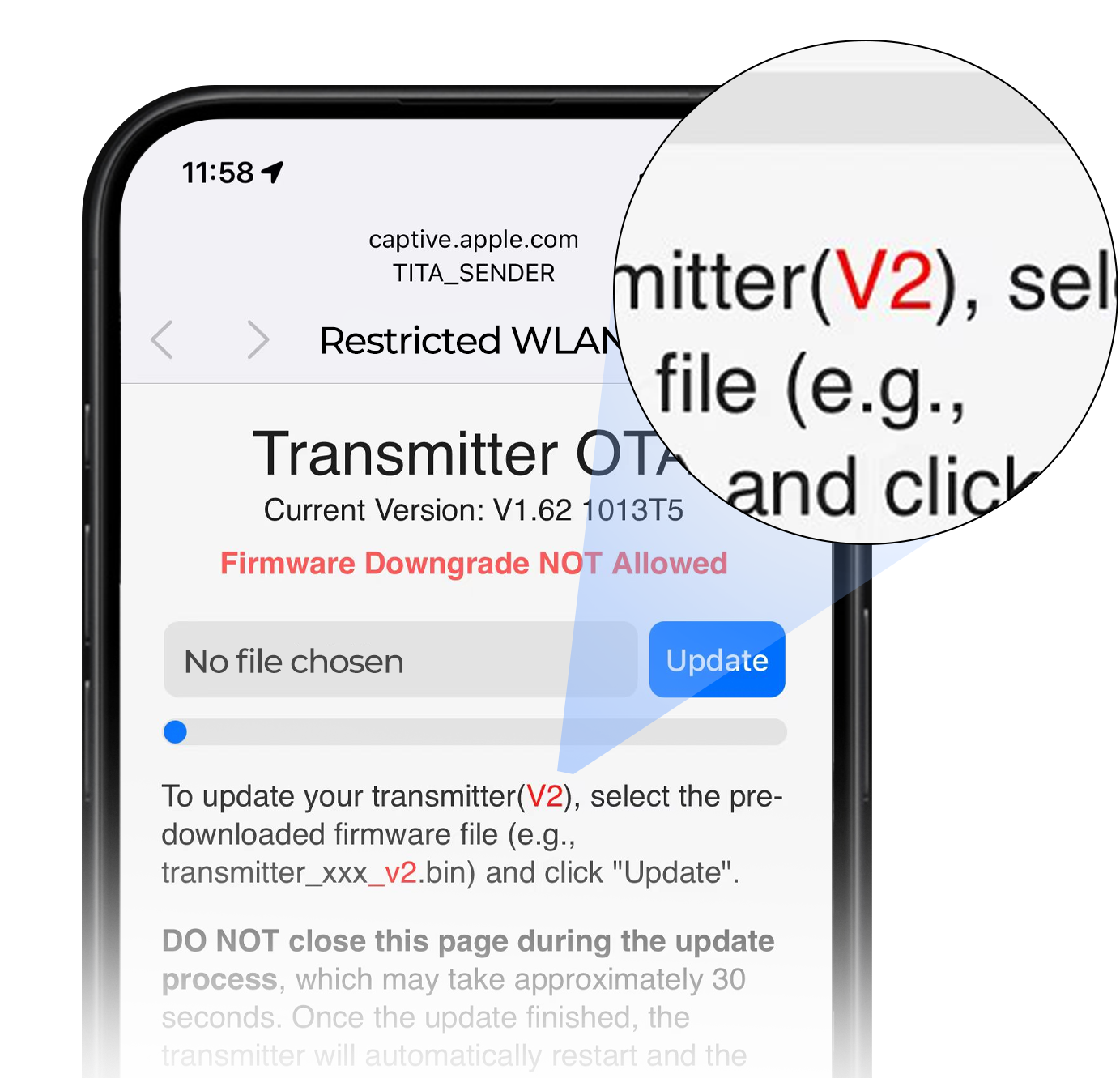

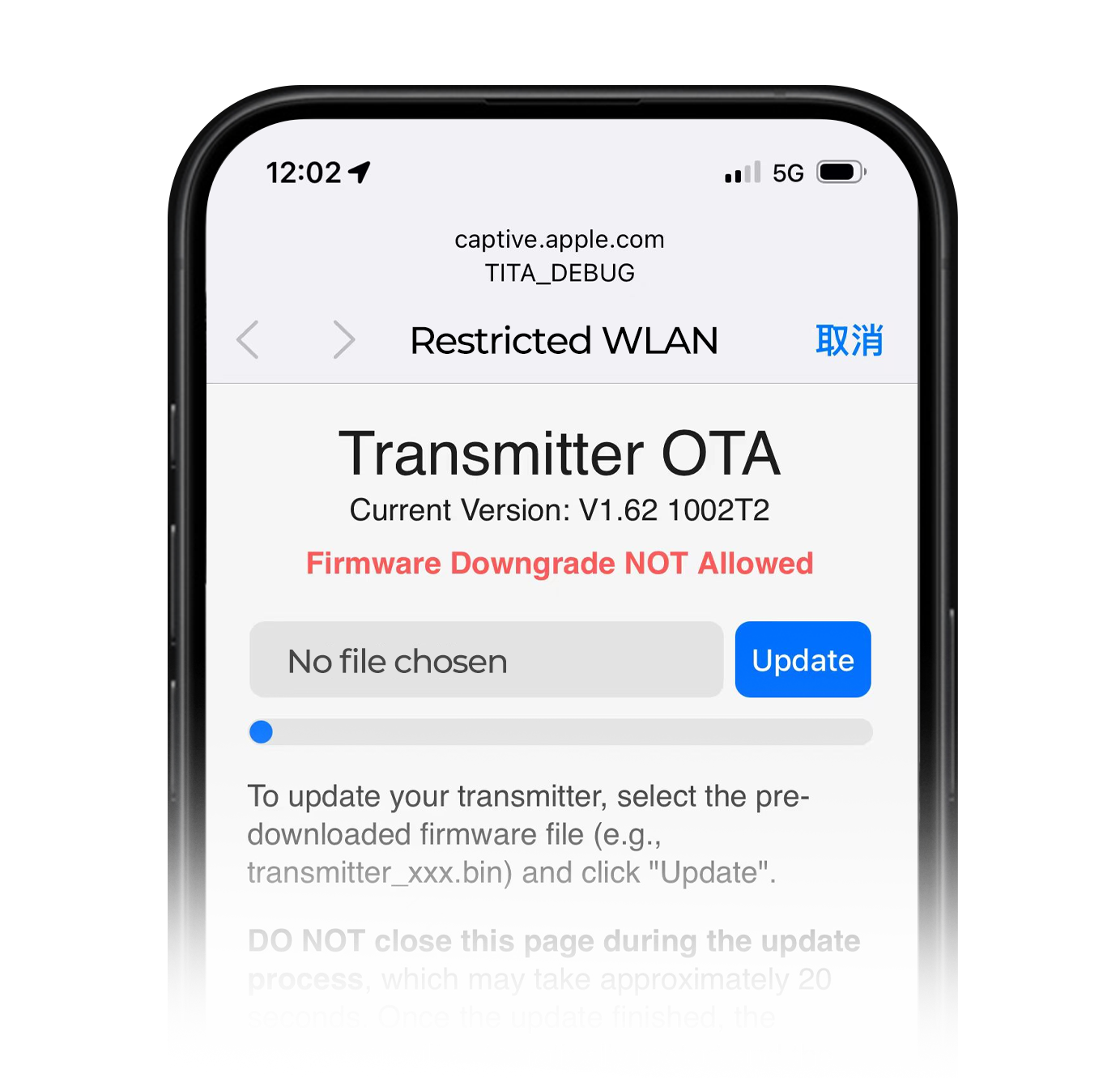

1. Download the transmitter update file.
2. Power the TITA HUD screen.
3. Press and hold the right scroll wheel to the left until a QR code appears.
4. Scan the QR code and upload the file on the update page.
The UI switch process is the same as the screen OTA.

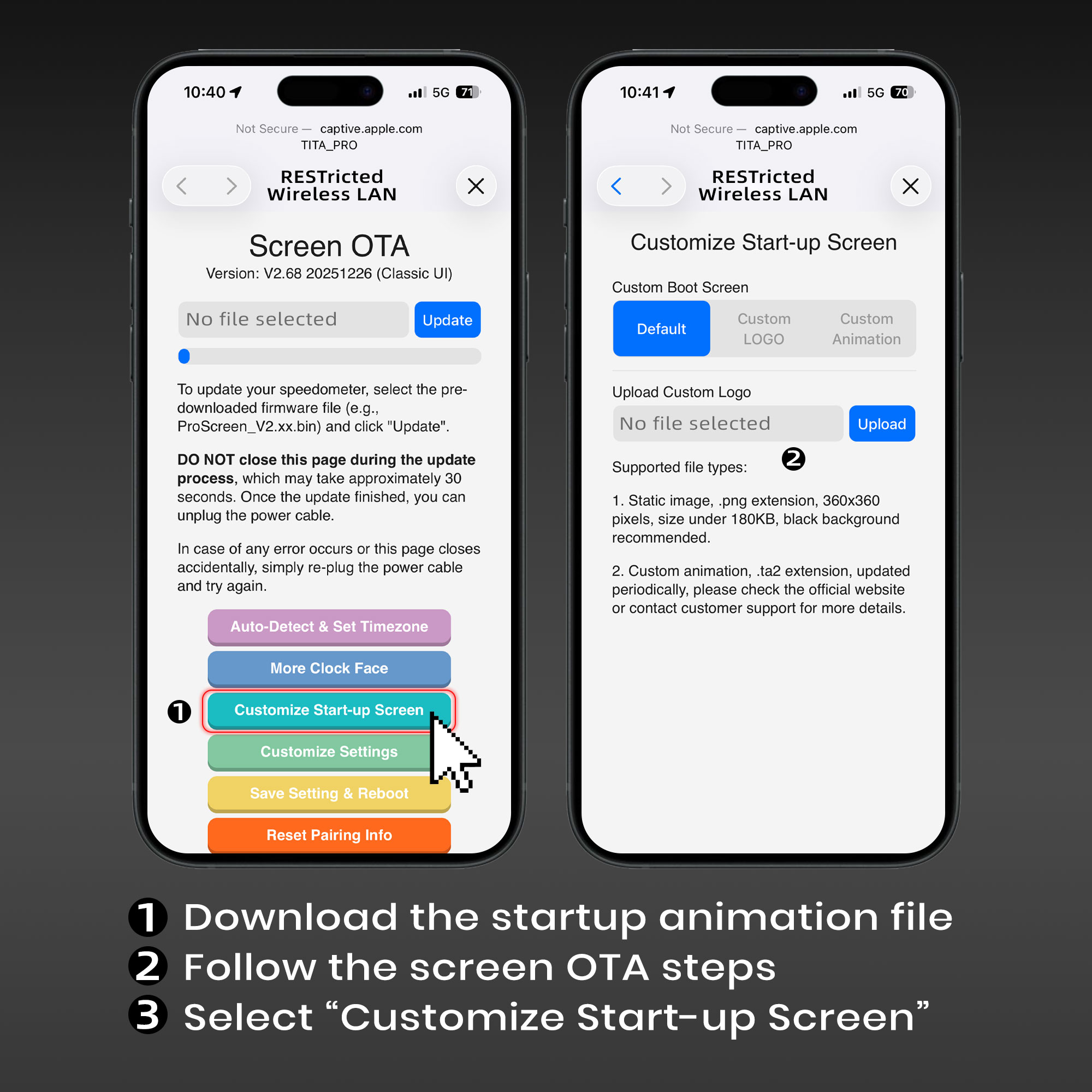

1. Download the startup animation file below.
2. Follow the screen OTA update steps to upload and update the file.

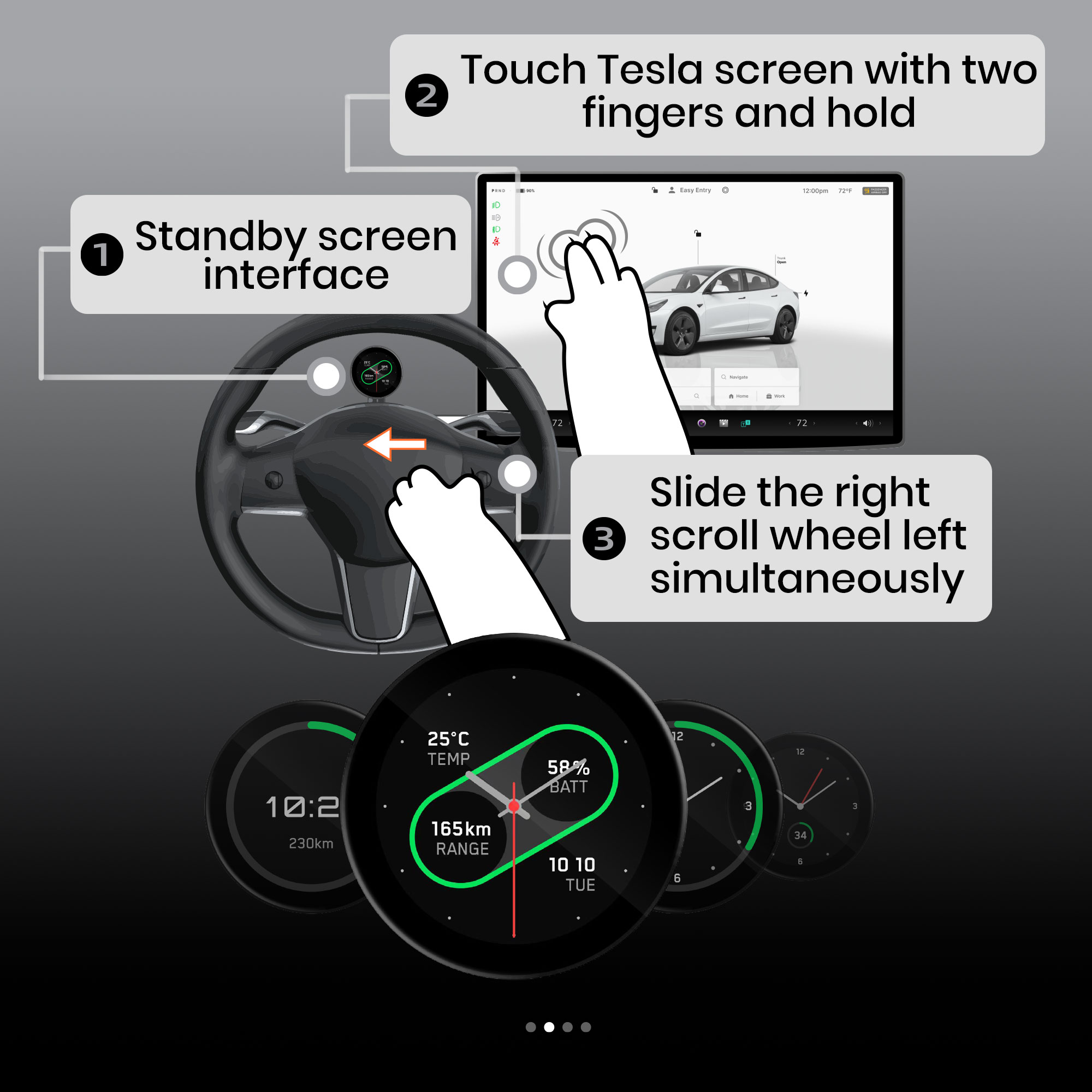

1.Touch the Tesla screen with two fingers and hold.
2.Slide the right scroll wheel to the left simultaneously.

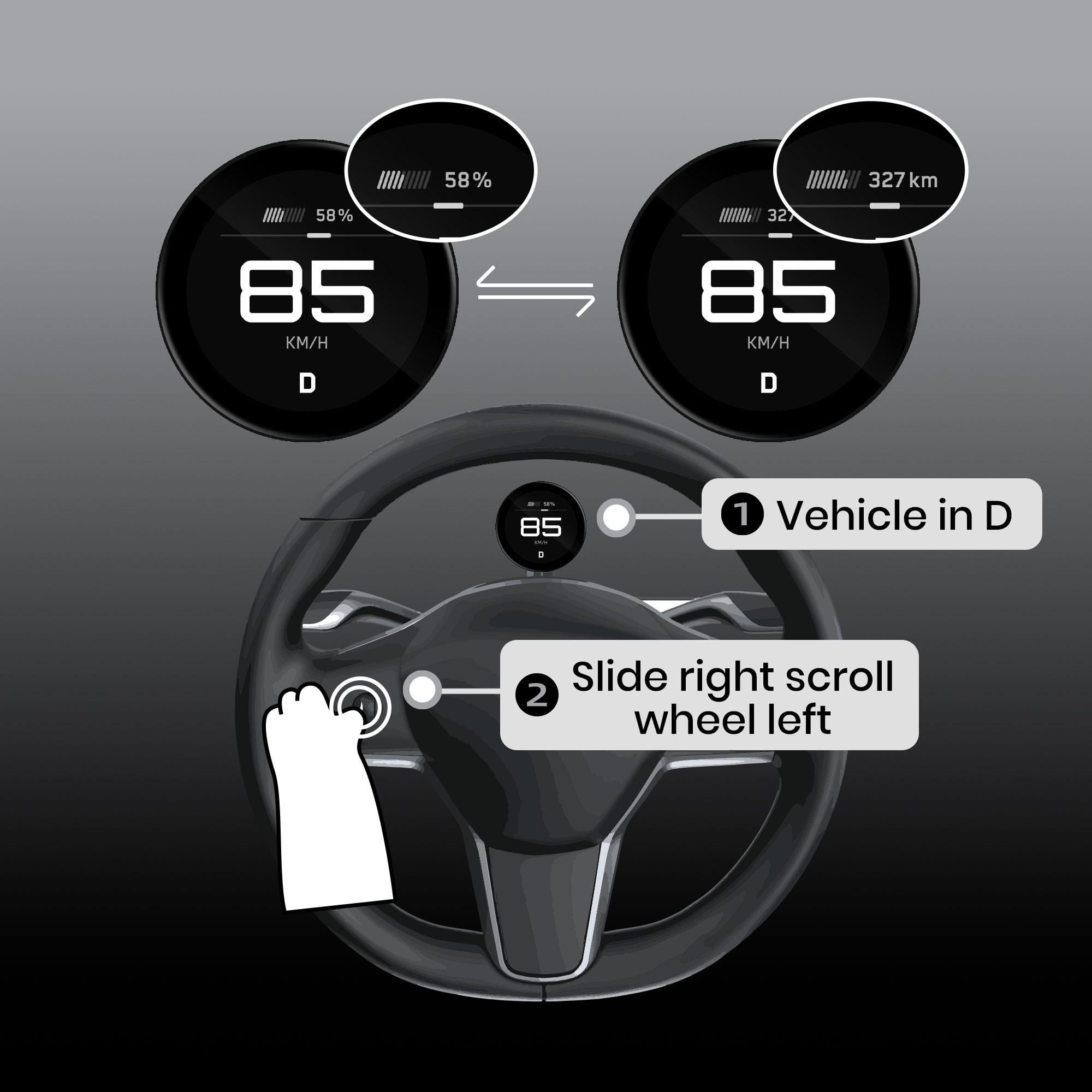

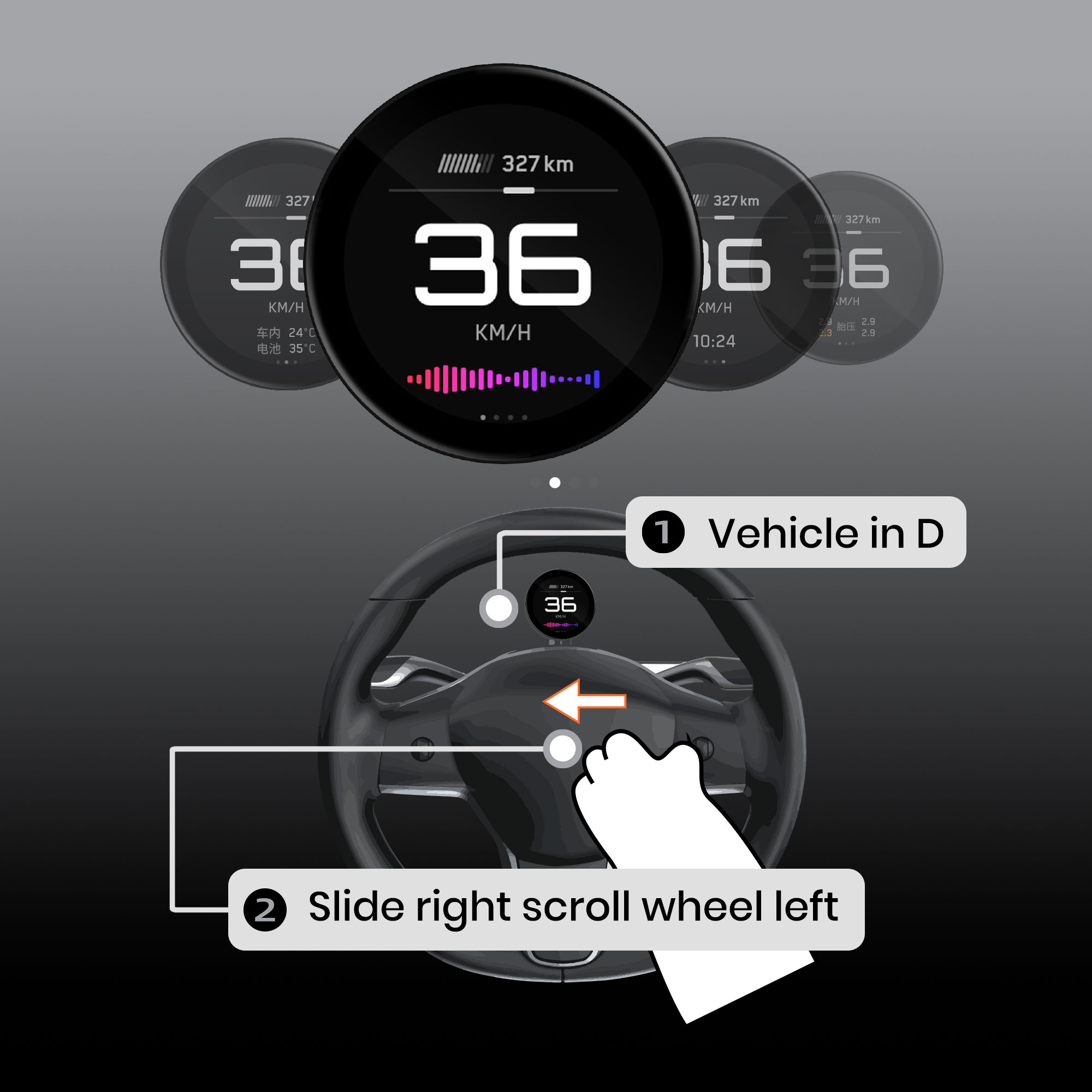

1. Shift the vehicle to D gear.
2. Slide the right scroll wheel to the left simultaneously.
1. Shift the vehicle to D gear.
2. Double-click the left scroll wheel knob.

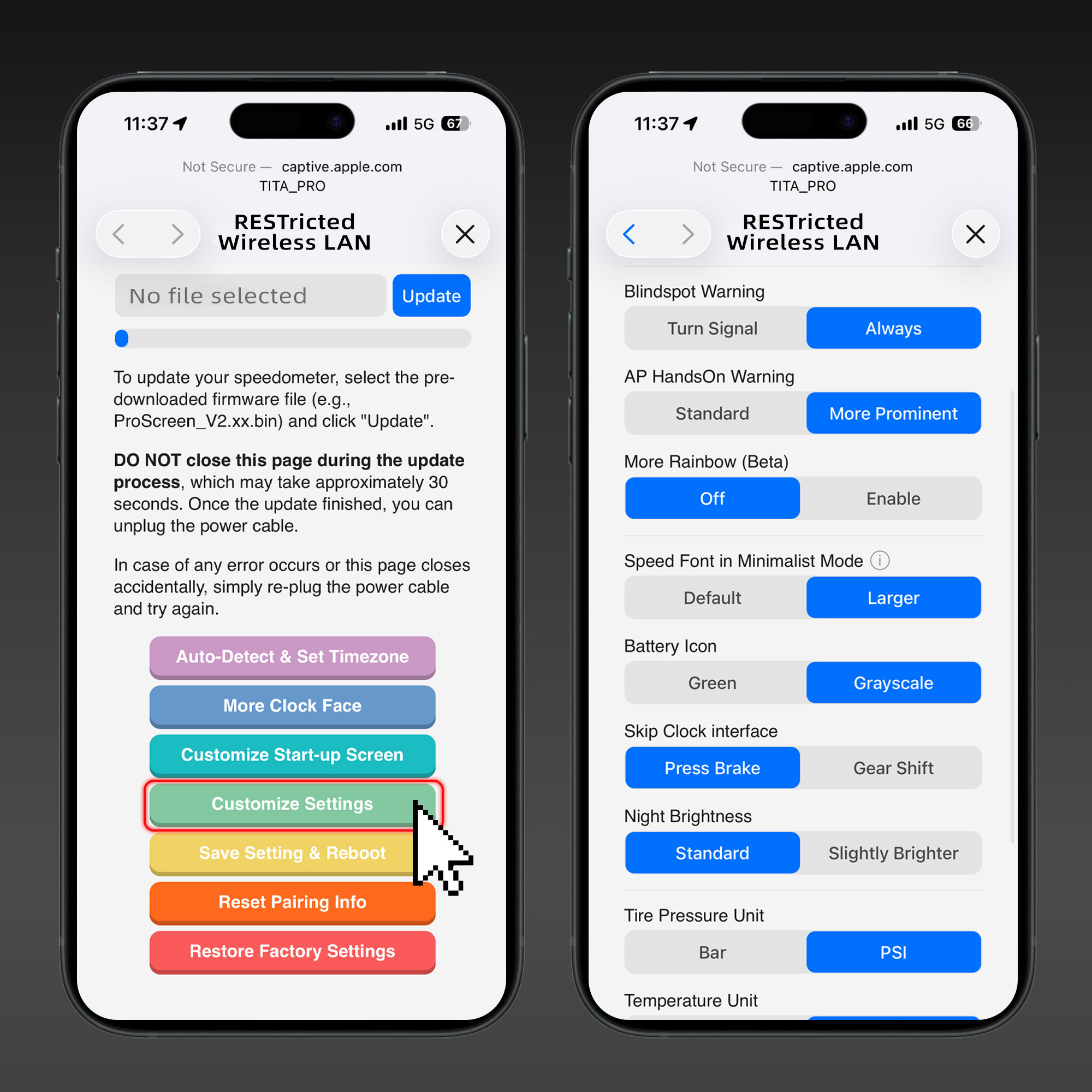

Follow the screen OTA steps to scan the QR code, go to the upload file page, and select the option to perform certain customizations.
The UI switch process is the same as the screen OTA.
1. Download the startup animation file below.
2. Follow the screen OTA update steps to upload and update the file.
1.Touch the Tesla screen with two fingers and hold.
2.Slide the right scroll wheel to the left simultaneously.
1. Shift the vehicle to D gear.
2. Slide the right scroll wheel to the left simultaneously.
1. Shift the vehicle to D gear.
2. Double-click the left scroll wheel knob.
Follow the screen OTA steps to scan the QR code, go to the upload file page, and select the option to perform certain customizations.
